Low Power Ultra-wideband (UWB) IP

• Consumer IoT
• Automotive
• Industrial
• Mobile
• PC

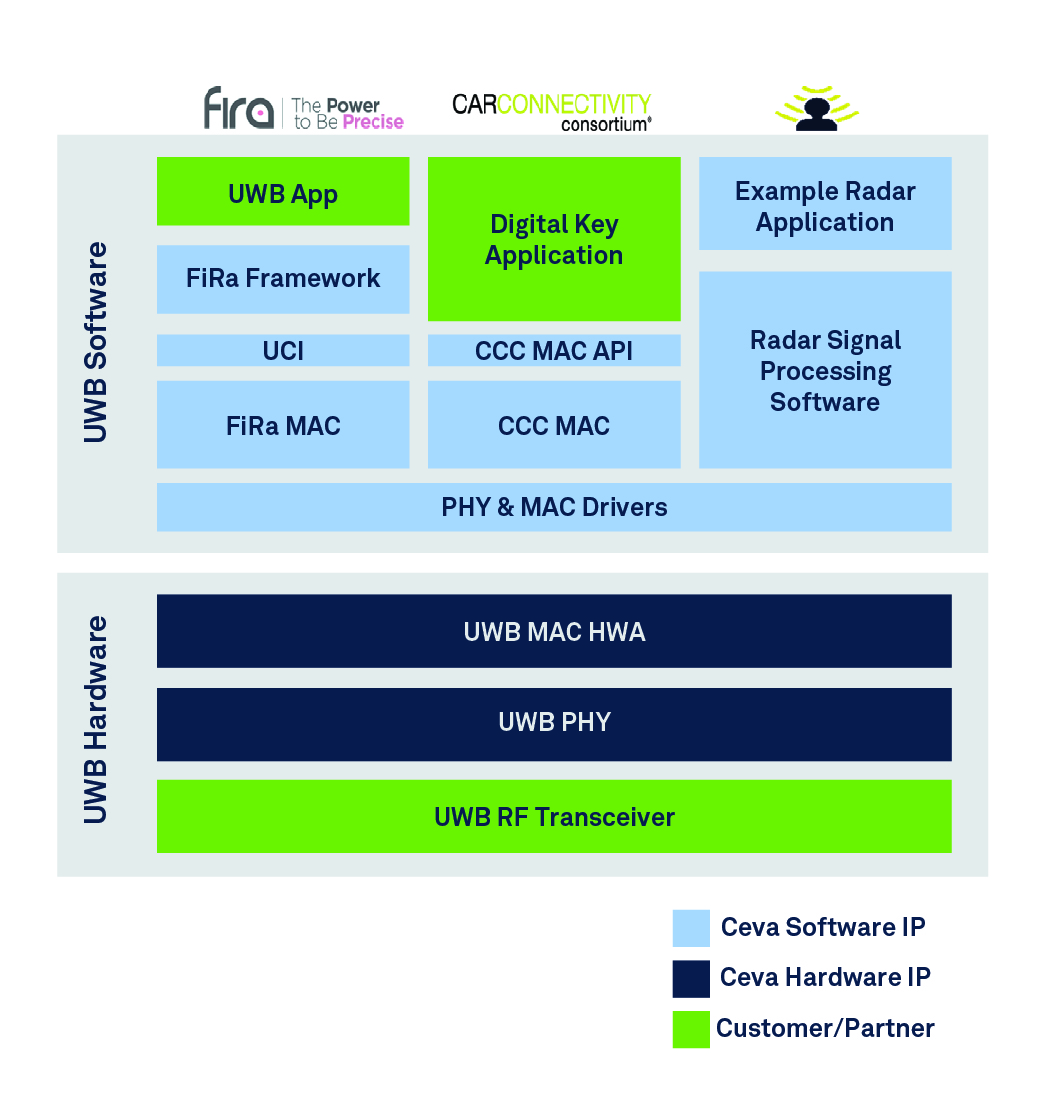

The Ceva-Waves UWB platform includes hardware IP for an optimized UWB MAC and PHY meeting 802.15.4 HRP, FiRa 3.0, and the Car Connectivity Consortium Digital Key 3.0 (CCC DK3.0) requirements. The platform includes advanced Wi-Fi interference suppression.

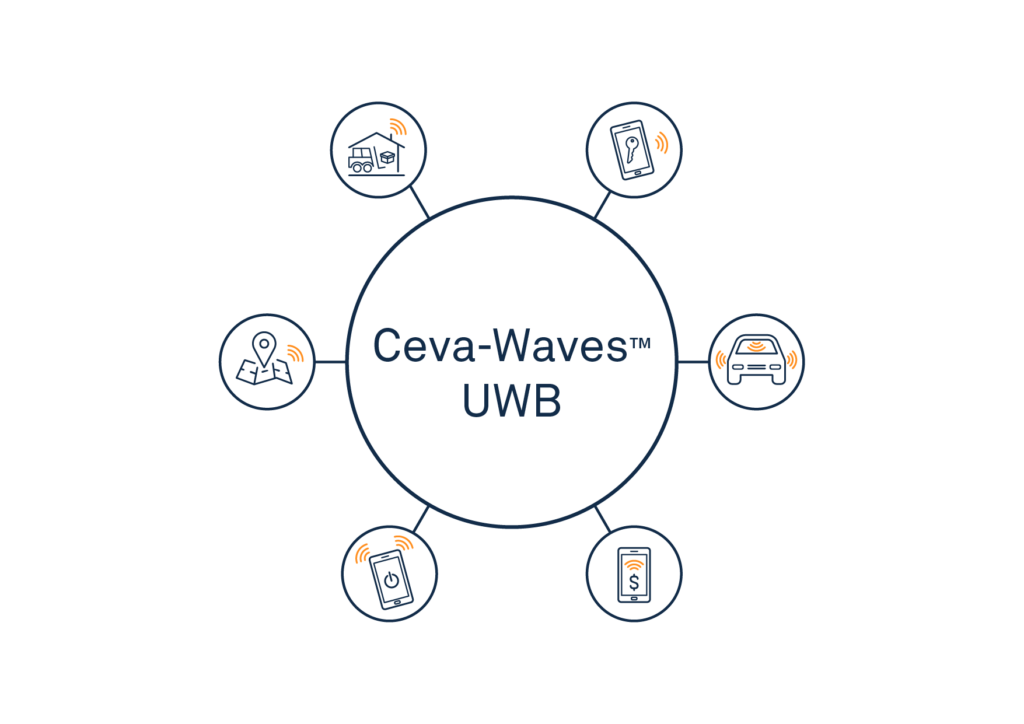

A comprehensive suite of CPU-agnostic software stacks that support FiRa 3.0 MAC, CCC DK3.0 MAC, and radar for implementing applications such as automotive digital keys and in-cabin child-presence detection (CPD), general power-saving presence detection in laptops, TVs and smart buildings, asset tracking tags, real-time location services (RTLS), and tap-free payment.

With proven MAC and PHY hardware IP and a wide range of application software, the Ceva-Waves UWB platform provides a fast, reliable route to FiRa and CCC UWB functionality in an SoC, separately or in conjunction with Ceva-Waves Bluetooth. In the latter configuration, operation of the two platforms can be orchestrated to minimize power consumption over long operating periods. The platform complies with major standards such as FiRa 2.0 and CCC DK 3.0. An optimized hardware and software architecture assures precise and robust location and radar data sufficient to detect human respiration remotely even in the presence of complex multipath environments and strong Wi-Fi signals.

• UWB MAC and PHY IP with support of enhanced ranging and security based on IEEE 802.15.4z HRP in accordance with FiRa 2.0 and CCC Digital Key 3.0 requirements
• UWB Doppler Radar support for automotive in-cabin Child Presence Detection (CPD) and general Human Presence Detection (HPD)
• Low power hardware PHY, implementing a high sensitivity coherent receiver with power optimized synchronization and advanced Wi-Fi interference suppression
• PHY supports centimeter-level accuracy for ranging and angle-of-arrival (AoA) estimation using multiple antennas
• Portable MAC layer software, with hardware offloading for encryption/authentication (CCM AES) and key management, autonomous ACK handshaking and other real-time-critical operations
• Supports secured data transfer up to 27Mbps using pulse based ultra-wideband communication with 500 MHz bandwidth
• Flexible low power modes applicable to FiRa and CCC ranging scenarios
• Easy interface to Ceva NPU and DSP cores, and Ceva-partner or third-party radios
